JAG Hobbies
Body Post Guide Pin
Installation Guide

#2-56 Threaded Stainless Steel Guide Pin
#12-0003BL
Long Version for newer tracks.
#2-56 Threaded Stainless Steel Guide Pin
#12-0003BS
Short Version for older (Aurora) tracks.
Installation Tool


This new guide pin will allow you to move the JAG chassis guide pin from the stock location forward by approximately 6.5 mm (0.260").

(Will also work with T-Jet cars)

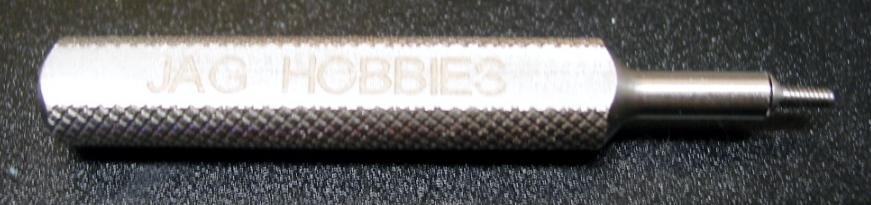

Pin in tool

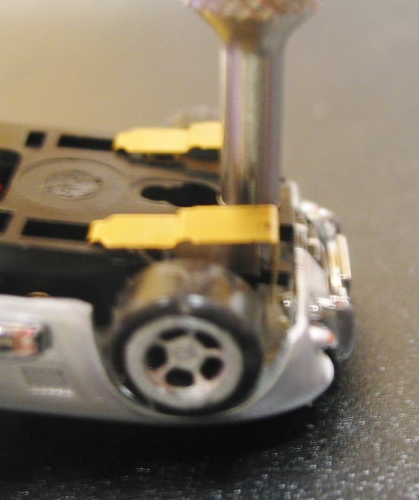

Installation of pin with tool.

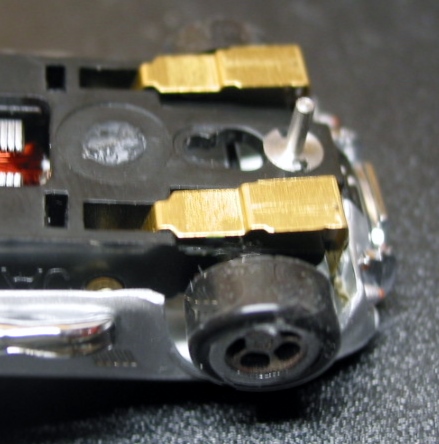

With standard guide pin location.

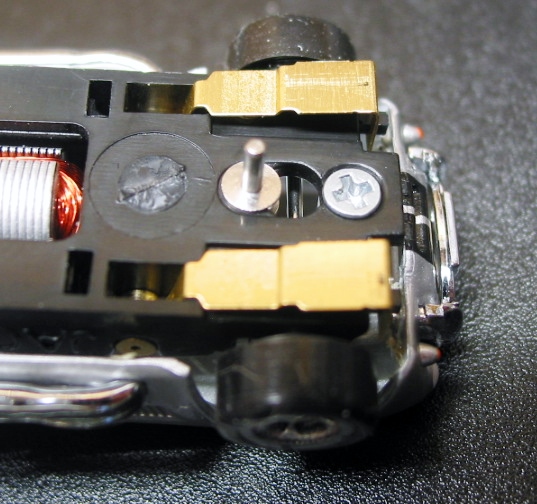

With new guide pin location.
