Brushless Speed Controllers Cables Connectors

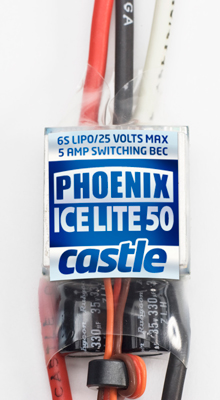

Phoenix ICE LITE 50
010-0069-00
$84.96

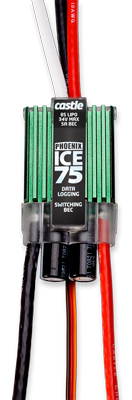

Phoenix ICE 75
010-0067-00
$101.96

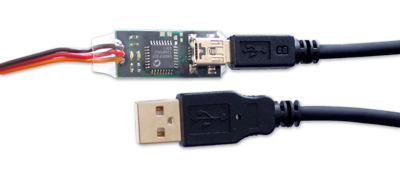

Castle Link
Programming Kit
010-0005-00
$24.95
CC Bullet
High Current Connector
030-0000-00
(4mm)
$3.99




We recommend the Phoenix ICE LITE 50 for the Honey Bee King 2, Honey Bee King 3, Belt CP, Belt CP V2, Walkera HM60#B, and Walkera Creata 400 helicopters.
We recommend the Phoenix ICE 75 for the Esky 900.

Phoenix Ice Lite 50 Phoenix Ice 75
Retail Price
$99.95
 $119.95
Item Number
010-0069-00
 010-0067-00
Length
1.6"
(40.6mm)
 2.6"
(66mm)
Width
1.00"
(26.4mm)
 1.3"
(33mm)
Height
0.5"
(12.7mm)
 0.8"
(20.6mm)
Weight
Weight without wires
0.8 oz
(22.7g)
 2 oz*
(56.7g*)
Weight with wires
1.71 oz
(48.6g)
 3.4 oz
(96.5g)
Motor wire size
13 AWG
 13 AWG
Motor wire length
5 inches
 5 inches
Battery wire size
13 AWG
 10 AWG
Battery wire length
6 inches
 7 inches
Max Amps - ESCs
50 amps*
 75 amps*
Max Amps - BEC
5 amps BEC
 5 amps BEC
Max Volts
25V
6s LiPo
20 cells NiCad/NiMh
 34V
8s LiPo
22 cells NiCad/NiMh
Technical Drawings (click image to open)
Phoenix Ice 75
Users Guide

*Ratings are determined with a 5mph airflow on the ESC.

 Data Logging
Ice brings another incredibly useful feature, extensive data logging capabilities. The controllers are able to measure and record many parameters at sample rates that you choose between 10 samples per second and 1 sample per second. Data points include:
  • Battery Voltage
  • Battery Ripple
  • Battery Current
  • Controller Temperature
  • Controller Input Throttle
  • Controller Motor Power Output
  • Motor RPM

This data is stored directly in the controller and may be accessed once the run is over using the Castle Link USB adapter (sold separately) and Castle Link software (available free at castlecreations.com). The Max Log Size is 21,504 bytes, everything takes one byte except for motor rpm which takes two.

  • Logging 'Battery Current' at only a 1 sample / second - 358 minutes of logging time (almost 6 hrs)
  • Logging 'Motor RPM' at only 1 sample / second - 179 minutes of logging time
  • Logging everything at only 1 sample / second - 44 minutes of logging time
  • Logging everything at 10 samples / second - 4 minutes and 28 seconds

The Ice comes in two versions, standard version which is optimized for demanding RC heli and sport aircraft applications and a Lite version packaged in heat shrink for users with tight fuselages.

All Phoenix Ice are ready to fly out of the bag, no programming is necessary for most aircraft applications. The controllers are set at the factory for Auto Lipo detect/cutoff operation and they are tuned for optimum outrunner performance.

Advanced users will find the incredible programmability of the Phoenix Ice allows for performance characteristics tailored exactly to their desires.

Heli users are raving about the performance of Castle’s programmable helicopter modes which include options to directly enter desired governed headspeeds as numerical values! Every heli power combination requires slightly varying governor gains, Castle makes these easy to tweak and the net result is a rock solid tail.

The heat sink is machined specifically for the controller and is bonded directly to the circuit boards for optimum heat uptake. We strongly recommend that users take advantage of the heat sink version wherever possible.

The Phoenix Ice switching BEC output is factory set to 5.0V. Users may use Castle Link to select their desired voltage between 5.0V and 7.0V, in 0.1V increments.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.



Specs
Part # 010-0005-00
Retail Price $24.95
Operating System Windows 2000, XP, Vista, and Windows 7
Port Utilized USB
Connector Type Universal

System Requirements: Castle Link is compatible with Windows 2000, XP, Vista, and Windows 7.*

*Windows Vista and Windows 7 require a specific installation process. See Castle Link FAQ page for more information.

Macintosh users may take advantage of software such as Parallels Desktop, VMware Fusion, or Apple's Boot Camp along with Windows 2000, XP, Vista, or Windows 7 to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations.






Is "stick" programming your Castle Creations brushless controller getting old?
Can't remember what settings are programmed in your ESC?

Why hassle with transmitter stick programming when you can plug your brushless controller into the Castle Link Windows® compatible programming adapter and the USB port on your PC? This little gem just made your speed controller even better by allowing:

  • Set up of programmable options with point and click ease.
  • View your current Phoenix program settings.
  • Customize values for low-voltage cutoff, prop brake strength and governor mode gain.
  • Download new software updates via the internet as they become available.

NEW revised interface featuring:

  • All-in-one support for Phoenix, Phoenix HV, Phoenix Ice, Thunderbird, Mamba Micro Pro, Mamba Max, Mamba Max Pro, Mamba Monster, Sidewinder, Hydra , and CC BEC, and CC BEC Pro products!
  • Now with saved settings files!
  • New "check for updates" feature!
  • Totally automatic install!
  • Expanded programming and parameters for all Castle car controllers

The easiest programming tool just got easier to use and configure your Castle Creations controllers!

No complicated connections! It's as easy as:

  1. Download the interface software from our Software area.
  2. Plug the Castle Link into the receiver lead on your controller and attach the mini USB cable included in the kit.
  3. Connect the USB cable to your PC.
